Provides flexibility in meeting current demands and allows for easy expansion as your needs grow. You can scale up the system by adding more generators. Additionally, it offers features such as 100% backup from a single extra generator, ensuring reliability without the need to duplicate the entire setup.
Key Specs:
Purity
95 to 99.999%
FLOW RATES
fit any flow requirements
Added Feature
multi-bank capability
Product Documentation
- Brochures
- Declarations
- Electrical Diagrams
- Flow Diagrams

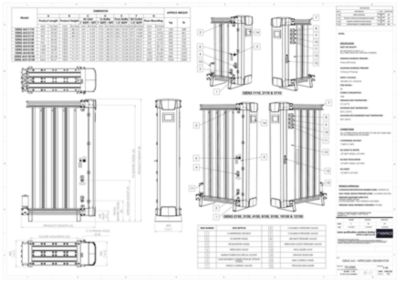

- General Arrangement Drawings
- Material Safety Data Sheets
- Service Guide
- Sapre Parts Guide
- Technical Papers
- User Guides
- Worksheet
Features
The PDES option allows additional energy saving to be attained by keeping the purity within a narrow band of the required value, with the optional employment of two oxygen analyzers
Space-saving, compact design allows for greater installation flexibility, helping you maximize your available area while benefiting from reliable, high-quality performance.
Specifications of Our Models
Nitrogen Generator Model |
Rated Outlet Flow at 100 psig |
Nitrogen Gas Purity* at the outlet (Maximum Oxygen Content)** | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 99.999% (10ppm) | 99.995% (50 ppm) | 99.99% (100 ppm) | 99.975% (250 ppm) | 99.95% (500 ppm) | 99.9% (0.10%) | 99.5% (0.50%) | 99% (1%) | 98% (2%) | 97% (3%) | 96% (4%) | 95% (5%) | ||
| GEN2 i4.0-1110 | scfh | 32 | 60 | 71 | 88 | 106 | 127 | 184 | 205 | 258 | 293 | 335 | 364 |
| GEN2 i4.0-2110 | scfh | 64 | 120 | 141 | 177 | 212 | 254 | 367 | 410 | 516 | 586 | 671 | 727 |
| GEN2 i4.0-3110 | scfh | 95 | 180 | 212 | 265 | 318 | 381 | 551 | 614 | 773 | 879 | 1006 | 1091 |
| GEN2 i4.0-2130 | scfh | 180 | 254 | 297 | 353 | 403 | 466 | 667 | 742 | 932 | 1070 | 1218 | 1324 |
| GEN2 i4.0-3130 | scfh | 270 | 381 | 445 | 529 | 604 | 699 | 1001 | 1112 | 1398 | 1605 | 1828 | 1986 |
| GEN2 i4.0-4130 | scfh | 360 | 509 | 593 | 706 | 805 | 932 | 1335 | 1483 | 1865 | 2140 | 2437 | 2649 |
| GEN2 i4.0-6130 | scfh | 540 | 763 | 890 | 1058 | 1208 | 1398 | 2002 | 2225 | 2797 | 3210 | 3655 | 3973 |
| GEN2 i4.0-8130 | scfh | 720 | 1017 | 1187 | 1411 | 1610 | 1865 | 2670 | 2966 | 3729 | 4280 | 4873 | 5297 |
| GEN2 i4.0-10130 | scfh | 828 | 1170 | 1365 | 1623 | 1852 | 2144 | 3070 | 3411 | 4289 | 4922 | 5604 | 6092 |
| GEN2 i4.0-12130 | scfh | 962 | 1358 | 1584 | 1884 | 2150 | 2489 | 3564 | 3960 | 4979 | 5714 | 6506 | 7072 |
*nitrogen purity relative to oxygen content
**without integrated dryer system
| Specifications | Standard | Optional |
|---|---|---|
| Design operating pressure range | 87 to 174 psig | 232 psig in USA |
| Design operating temperature range | 41 to 122°F | - |
| Recommended operating temperature range | 41 to 86°F | - |
| Maximum inlet particulate | 0.1 micron | - |
| Maximum inlet dew point | +38°F PDP | - |
| Recommended inlet dew point | -40°F PDP | - |
| Maximum inlet oil content | 0.01 ppm | - |
| Supply voltage | 100 - 240 VAC (50 or 60Hz) | - |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
Frequently Asked Questions
A nitrogen generator is a device that produces nitrogen gas (N₂) from compressed air. It uses separation methods, such as Pressure Swing Adsorption (PSA) and Membrane Technology, to remove oxygen and other gases, leaving purified nitrogen gas.
- Cost savings: Long-term savings are achieved by eliminating the recurring costs of purchasing bottled nitrogen.
- Convenience: Continuous on-site nitrogen generation eliminates the need for deliveries and reduces the risk of running out of nitrogen.
- Customization: On-demand nitrogen generation allows you to tailor the flow and purity to your needs.
- PSA (Pressure Swing Adsorption): Uses carbon molecular sieves to separate nitrogen from other gases in compressed air under varying pressure.
- Membrane Technology: This technology uses selective permeable membranes to separate nitrogen from oxygen based on the size of the molecules.
The GEN2 i4.0 uses PSA or Pressure Swing Adsorption technology to separate nitrogen from other gases in compressed air.
GEN2 i4.0 nitrogen generators can produce nitrogen gas at purities between 95% to 99.999% purity. Achievable purity levels for nitrogen generators are relative to Oxygen content.
The necessary purity will vary based on your application. Different industries and uses (e.g., food packaging, pharmaceuticals, electronics, or industrial processes) will require various nitrogen purities. Our team will collaborate with you to understand your requirements.
The flow rate (measured in standard cubic feet per hour, scfh) will depend on the application. Understanding your nitrogen consumption is key to selecting the right system.
The cost of a GEN2 i4.0 nitrogen generator varies depending on its size, purity, and flow rate, as well as the inlet compressed air pre-treatment filtration and drying equipment.
Maintenance will involve regular filter changes, periodic system pressure checks, and monitoring the air compressor's performance. nano GEN2 i4.0 nitrogen generators have built-in diagnostics to assist with preventive maintenance. Regular servicing by the manufacturer or a qualified technician is crucial. Consult the GEN2 i4.0 service manual or contact our nano technical support team for more information.
The total energy usage varies based on the nitrogen generator size and flow rate. Most of the energy consumption is centered around the required inlet compressed air. For energy consumption for a specific model, view the technical data sheets found by model number in the specification table above.
A well-maintained GEN2 i4.0 nitrogen generator can last 15 to 20 years, depending on the model, usage, and maintenance practices. The lifespan of key components (such as filters and sieves) will vary, so regular servicing is essential.
The size and space required will depend on the nitrogen generator's capacity and model. The nano GEN2 i4.0 nitrogen generators' modular design makes them compact and easy to fit through a standard doorway. They are typically installed in industrial settings, where they can connect easily to compressed air sources and distribution systems. It’s important to ensure proper ventilation and adequate space for the unit. Always consult a certified nano distributor or a nano team member for assistance.
Various industries, such as food packaging, pharmaceuticals, and electronics, have specific requirements for nitrogen purity and flow rate. It's important to ensure that the nitrogen generator you choose meets your application's demands. Our expert team is here to guide you through the selection process, helping you choose the right model specifications for your unique needs. Contact us today to discuss your requirements.
Period: 30 months from date of shipment from the factory or 24 months from date of installation/start up, whichever occurs first • Coverage: 100% parts and labor per defined service time allowances • Requirements: Pre Filter & non-corrosive upstream piping required and completed start-up checklist required
While nitrogen is non-toxic, it is an asphyxiant in high concentrations. Proper ventilation is critical to prevent nitrogen buildup in enclosed spaces. Regularly monitoring nitrogen levels and following all safety guidelines is essential to avoid risks. Refer to the nano GEN2 i4.0 nitrogen generator user guide for detailed guidelines.
Yes, nitrogen generators can often be integrated with various types of machinery and production lines. Ensure your chosen system is compatible with your existing equipment, especially in automated or controlled environments.
The ROI will depend on your current nitrogen consumption and the cost of purchasing bottled nitrogen. Typically, a GEN2 i4.0 nitrogen generator can pay for itself in less than 24 months due to the savings on ongoing gas purchases, delivery fees, and surcharges.
Yes, our nitrogen generators can help reduce the carbon footprint by eliminating the need for frequent delivery trucks, packaging, and other logistics associated with bottled nitrogen. Additionally, they offer a more energy-efficient option than some other methods of nitrogen production.
nano offers financing options for GEN2 i4.0 nitrogen generators, which can help spread out the upfront cost. Contact us today to learn more.
