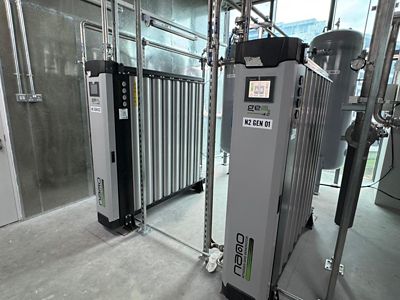

Two Gen2 i4.0 of nitrogen generators standing together

Nitrogen Generation

Ultra-High Purity Nitrogen Generators

At nano, we recognize the importance of having a safe, reliable and cost-effective supply of nitrogen gas. With the ability to produce nitrogen in-house simply and inexpensively, our range of GEN2 i4.0 PSA nitrogen gas generators meet the increasing demand for ultra-high purity nitrogen gas produced on-site with typical payback of 6 to 24 months. Generate as little or as much nitrogen gas as you need at a fraction of delivered gas cost.

Key Specs:

Purity

95 to 99.999%

Added Feature

fit any flow requirements

Added Feature

multi-bank capability

Product Documentation

N2 GEN2-i4.0 - Brochure

Gen2 i4.0 - Brochure

Filename
UK-N2-GEN2-i4.0-brochure-ultra-high-purity-nitrogen-generators.pdf
Size
700 KB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
Gen2 i4.0 user guide

N2 GEN2 i4.0 - User Guide

Filename
N2-GEN2-i4.0-user-guide-manual-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
nano gen2 i4.0 inlet dew point monitoring user guide

N2 GEN2 i4.0 (Inlet Dew Point Monitoring)

Filename
N2-GEN2-i4.0-user-guide-manual-inlet-dew-point-monitoring-nitrogen-generator.pdf
Size
2 MB
Format
application/pdf
View
Gen2 i4.0 user guide

N2 GEN2 i4.0 (Modbus TCP & Ethernet IP)

Filename
N2-GEN2-i4.0-user-guide-manual-nitrogen-generator-Modbus-TCP-IP-Comms.pdf
Size
2 MB
Format
application/pdf
View
Gen2 i4.0 user guide

N2 GEN2 i4.0 (Control System)

Filename
N2-GEN2-i4.0-user-guide-manual-nitrogen-generator-control-panel.pdf
Size
2 MB
Format
application/pdf
View
The maintenance and service manual for the GEN2 i4.0 range of nitrogen generators

GEN2 i4.0 - Maintenance & Service Manual

Filename
N2-GEN2-i4.0-service-manual-maintenance-nitrogen-generators.pdf
Size
14 MB
Format
application/pdf
View
equipment worksheet product technical paper

Nitrogen Generator - Worksheet

Filename
EN-N2-Series-worksheet-nitrogen-generators.pdf
Size
214 KB
Format
application/pdf
View
equipment worksheet product technical paper

Nitrogen Generator - Technical Paper

Filename
EN-N2-Series-technical-paper-nitrogen-generators.pdf
Size
464 KB
Format
application/pdf
View
equipment worksheet product technical paper

Nitrogen Generator - Food-Grade Declaration

Filename
EN-N2-Series-declaration-certificate-food-grade-E941-nitrogen-generators.pdf
Size
262 KB
Format
application/pdf
View
The ga drawing for all models of the GEN2 i4.0 nitrogen generator

N2 GEN2 i4.0 - GA Drawing (REV 01)

Filename
N2-GEN2-i4.0-ga-general-arrangement-drawing-ultra-high-purity-nitrogen-generator.PDF
Size
633 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

N2 GEN2 i4.0 - Electrical Diagram

Filename
N2-Gen2-i4.0-electrical-wiring-schematics-nitrogen-generator.pdf
Size
545 KB
Format
application/pdf
View
Electrical diagram for the controller on the Gen2i4.0 product

N2 Gen2 i4.0 Controller - Electrical Diagram

Filename
N2-GEN2-i4.0-controller-electrical-wiring-schematic-nitrogen-generator.pdf
Size
720 KB
Format
application/pdf
View
The flow diagram for the GEN2 i4.0 nitrogen generator models

GEN2 i4.0 - Flow Diagram

Filename
N2-Gen2-i4.0-flow-diagram-PID-nitrogen-generator.pdf
Size
545 KB
Format
application/pdf
View

Features

Skid packaged multi-banked systems with complete compressed air pre-treatment for a systems approach

 The PDES option allows additional energy saving to be attained by keeping the purity within a narrow band of the required value, with the optional employment of two oxygen analyzers

These models have the ability to install multiple units in parallel for larger capacities or as your requirements grow

Specifications of our models

 Generator Model

 Rated Outlet Flow (1)

Nitrogen Purity* at the outlet (Maximum Oxygen Content)**
 99.999% (10ppm)   99.995% (50 ppm)   99.99% (100 ppm)   99.975% (250 ppm)   99.95% (500 ppm)   99.9% (0.10%)   99.5% (0.50%)   99% (1%)   98% (2%)   97% (3%)   96% (4%)   95% (5%)
GEN2 i4.0-1110 scfh 32 60 71 88 106 127 184 205 258 293 335 364
GEN2 i4.0-2110 scfh 64 120 141 177 212 254 367 410 516 586 671 727
GEN2 i4.0-3110 scfh 95 180 212 265 318 381 551 614 773 879 1006 1091
GEN2 i4.0-2130 scfh 180 254 297 353 403 466 667 742 932 1070 1218 1324
GEN2 i4.0-3130 scfh 270 381 445 529 604 699 1001 1112 1398 1605 1828 1986
GEN2 i4.0-4130 scfh 360 509 593 706 805 932 1335 1483 1865 2140 2437 2649
GEN2 i4.0-6130 scfh 540 763 890 1058 1208 1398 2002 2225 2797 3210 3655 3973
GEN2 i4.0-8130 scfh 720 1017 1187 1411 1610 1865 2670 2966 3729 4280 4873 5297
GEN2 i4.0-10130 scfh 828 1170 1365 1623 1852 2144 3070 3411 4289 4922 5604 6092
GEN2 i4.0-12130 scfh 962 1358 1584 1884 2150 2489 3564 3960 4979 5714 6506 7072

*nitrogen purity relative to oxygen content

**without integrated dryer system

Specifications
Design Operating Pressure Range 87 - 174 psig (6-12 barg) (2)
Design Operating Temperature Range 41 - 122°F (5 - 50°C)
Recommended Operating Temperature Range 41 - 86°F (5 - 30°C)
Maximum Inlet Particulate 0.1 micron
Maximum Inlet Dew Point +38°F (3.3°C) PDP (3)
Recommended Inlet Dew Point -40°F (-40°C) PDP
Maximum Inlet Oil Content 0.01 ppm (4)
Supply Voltage 100 - 240 VAC (50 or 60Hz)

(1) at 100 psig (7 barg) inlet pressure and 68 - 77°F (20 - 25°C) inlet temperature. For outlet flow at all other conditions refer to the correction

factors above or contact support

(2) 232 psig (16 barg) option available in USA. 210 psig (14.5 barg) option available in Canada. Consult factory

(3) for low purity applications only

(4) including oil vapor

(5) to be used as a rough guide only. All applications should be confirmed by nano. Contact nano for sizing assistance

(6) technical specifi cations subject to change without notice. Direct inquiries to support or contact 704.897.2182
