Oxygen Generation

OGX Oxygen Generators

The nano OGX oxygen generator is a game-changer in oxygen generation technology. Its emphasis on efficiency, quality, and cost-effectiveness sets it apart from other options in the market. Not only does it use top-tier media and innovative design to ensure optimal oxygen volume, purity, and reliability, but it also meets the diverse needs of various industries and applications. What's even more impressive is its ability to significantly lower the cost per unit of oxygen, making it a compelling choice for businesses and organisations seeking sustainable and economical oxygen solutions. Trust the nano OGX oxygen generator to deliver on all fronts.

Key Specs:

Purity

90 to 95%

Flow Rate

up to 33.0 Nm3/h

Max Allowable Working Pressure

10 barg

Product Documentation

The EN-UK brochure for the O2 OGX oxygen generators

OGX Oxygen Generators

Product Brochure

Filename
EN-UK-O2-OGX-brochure-oxygen-generators.pdf
Size
933 KB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
C:\Users\INEbm\Downloads\9828530111-01\9828530111-01-01 Model (1)

OGX Oxygen Generators

Electrical Diagram

Filename
O2-OGX-110-1070-electrical-wiring-schematic-oxygen-generators.pdf
Size
2 MB
Format
pdf
View

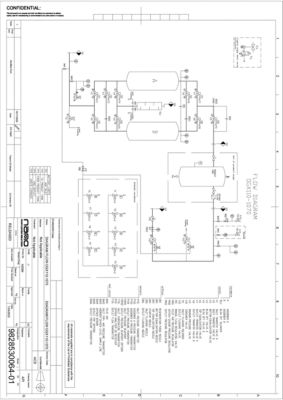

C:\Users\INEbm\Downloads\9828530064-01 Model (1)

OGX Oxygen Generators

Flow Diagram

Filename
O2-OGX-110-1070-flow-diagram-oxygen-generators.pdf
Size
230 KB
Format
pdf
View
9828530047-02.idw

OXG 110 Oxygen Generator

General Arrangement Drawing

Filename
O2-OGX-110-imperial-ga-general-arrangement-drawing-oxygen-generator.pdf
Size
498 KB
Format
pdf
View

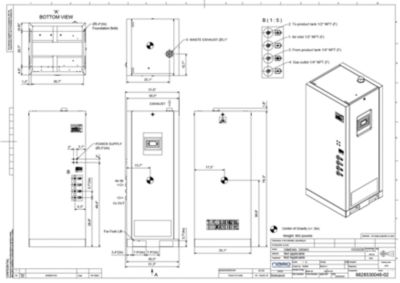

9828530048-02.idw

OXG 220 Oxygen Generator

General Arrangement Drawing

Filename
O2-OGX-220-imperial-ga-general-arrangement-drawing-oxygen-generator.pdf
Size
497 KB
Format
pdf
View
9828530049-02.idw

OXG 330 Oxygen Generator

General Arrangement Drawing

Filename
O2-OGX-330-imperial-ga-general-arrangement-drawing-oxygen-generator.pdf
Size
490 KB
Format
pdf
View
9828530050-02.idw

OXG 440 Oxygen Generator

General Arrangement Drawing

Filename
O2-OGX-440-imperial-ga-general-arrangement-drawing-oxygen-generator.pdf
Size
490 KB
Format
pdf
View
9828530051-02.idw

OXG 550 Oxygen Generator

General Arrangement Drawing

Filename
O2-OGX-550-imperial-ga-general-arrangement-drawing-oxygen-generator.pdf
Size
492 KB
Format
pdf
View
9828530052-02.idw

OXG 660 Oxygen Generator

General Arrangement Drawing

Filename
O2-OGX-660-imperial-ga-general-arrangement-drawing-oxygen-generator.pdf
Size
604 KB
Format
pdf
View
9828530053-02.idw

OXG 850 Oxygen Generator

General Arrangement Drawing

Filename
O2-OGX-850-imperial-ga-general-arrangement-drawing-oxygen-generator.pdf
Size
697 KB
Format
pdf
View
9828530054-02.idw

OXG 1070 Oxygen Generator

General Arrangement Drawing

Filename
O2-OGX-1070-imperial-ga-general-arrangement-drawing-oxygen-generator.pdf
Size
598 KB
Format
pdf
View

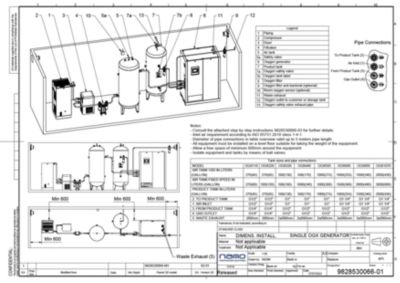

9828530066-01.idw

OXG Oxygen Generator - Single Unit

Installation Diagram

Filename
O2-OGX-installation-diagram-instructions-single-unit-oxygen-generators.pdf
Size
589 KB
Format
pdf
View

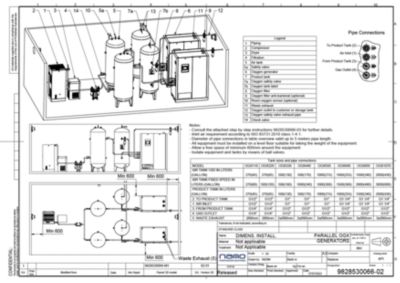

9828530066-02.idw

OXG Oxygen Generators - Parallel Units

Installation Diagram

Filename
O2-OGX-installation-diagram-instructions-paralle-units-oxygen-generators.pdf
Size
697 KB
Format
pdf
View
sd2084_-_SYLOBEAD®_MS_C_544-[$6_1$]-_(GB)

OGX Oxygen Generators Sylobead MS

Material Safety Data Sheet

Filename
EN-D1-NDL010-050-LDP-MSDS-desiccant-dryers-SYLOBEAD-MS-C-544-(GB).pdf
Size
165 KB
Format
pdf
View
The spare parts list for the O2 OGX 0110-1070 oxgyen generator product series

OXG 110-1070 Oxygen Generators

Spare Parts

Filename
O2-OGX-110-1070-spare-parts-list-oxygen-generators.pdf
Size
2 MB
Format
pdf
View
Instruction book

OXG 110-1070 Oxygen Generators

User Guide

Filename
O2-OGX-110-1070-user-guide-manual-oxygen-generators.pdf
Size
8 MB
Format
pdf
View

Features

Customisable and adjustable to specific oxygen purity and flow rate requirements.

Includes a zirconium O2 purity sensor, flow meter and pressure regulator as standard.

Eliminates the need for transportation and storage of oxygen cylinders, reducing logistical complexities and safety risks associated with handling high-pressure gas cylinders.

Specifications of our models

Generator Model

Rated Outlet Flow
at 6 barg

Oxygen Purity at the Outlet

90%

93%

95%

OGX 110

Nm3/h

3.0

3.0

3.0

OGX 220

Nm3/h

7.0

6.0

5.0

OGX 330

Nm3/h

10.0

9.0

8.0

OGX 440

Nm3h

13.0

13.0

11.0

OGX 550

Nm3/h

17.0

16.0

14.0

OGX 640

Nm3/h

20.0

18.0

15.0

OGX 850

Nm3/h

26.0

24.0

20.0

OGX 1070

Nm3/h

33.0

30.0

25.0


Specifications

Standard

Optional

Design operating pressure range

4.5 to 10 barg

-

Design operating temperature range

4 to 50°C

-10 to 50°C

Recommended operating temperature range

5 to 55°C

-

Maximum inlet particulate

0.1 micron

-

Maximum inlet dew point

7°C PDP

-

Recommended inlet dew point

3.0°C PDP

-

Maximum inlet oil content

0.01 ppm

-

Supply voltage

115-230V/1Ph/50-60Hz

-

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
