Customizable and adjustable to specific oxygen purity and flow rate requirements.
Key Specs:
Purity
90 to 95%
Flow Rate
up to 19.3 scfh
Max Allowable Working Pressure
145 psig
Product Documentation

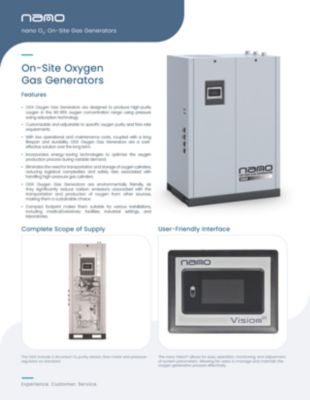

- Brochures
- Electrical Diagrams
- Flow Diagrams
- GA Drawings
- Installation Diagrams
- Material Safety Data Sheets
- Spare Parts
- User Guides
Features
Includes a zirconium O2 purity sensor, flow meter and pressure regulator as standard.
Eliminates the need for transportation and storage of oxygen cylinders, reducing logistical complexities and safety risks associated with handling high-pressure gas cylinders.
Specifications of our models
Specifications |
Standard |
Optional |
|---|---|---|
Design operating pressure range |
65 to 145 psig |
- |
Design operating temperature range |
41 to 122°F |
14 to 122°F |
Recommended operating temperature range |
41 to 95°F |
- |
Maximum inlet particulate |
0.1 micron |
- |
Maximum inlet dew point |
45°F PDP |
- |
Recommended inlet dew point |
37.4°F PDP |
- |
Maximum inlet oil content |
0.01 ppm |
- |
Supply voltage |
100 - 240 VAC (50 or 60Hz) |
- |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
