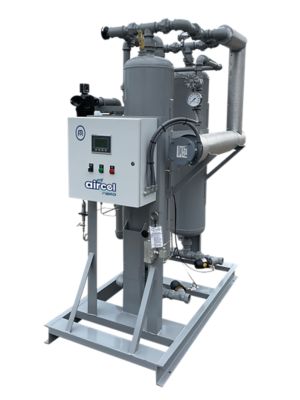

AEHD model of aircel Externally Heated Desiccant Dryer

Desiccant Compressed Air Dryers

aircel Externally Heated Dryers

The nano D5  AEHD externally heated twin tower desiccant compressed air dryers are designed to remove water vapor from your compressed air lowering the pressure dewpoint to -40°F. Designed for the most demanding environments, low pressure drop and consistent dew point performance are key benefits of the dryer range. As the size of your compressed air system increases, it becomes more important to reduce purge air consumption. The EHA range does just that with the purge rate averaging 6 to 8% conserving compressed air and saving you money.

Request Price

Key Specs:

Flow Rate

150 to 3000 scfm

Connection

1” NPT(F) to 6” Flg

air quality

ISO 8573.1:2010

Product Documentation

The brochure for the aircel line of twin tower desiccant dryers, models ABP and AEHD

D5 ABP/AEHD - Brochure

Filename
EN-D5-HLA-ABP-AEHD-brochure-aircel-twin-tower-desiccant-dryers-REV-006.pdf
Size
9 MB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Application Worksheet

Filename
EN-D-series-worksheet-desiccant-dryers.pdf
Size
212 KB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Technical Paper

Filename
EN-D-Series-technical-paper-desiccant-dryers.pdf
Size
450 KB
Format
application/pdf
View

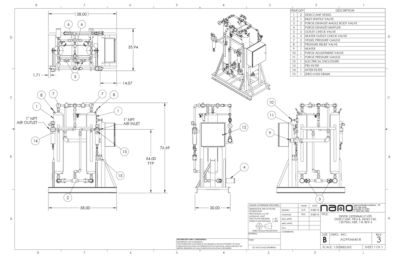

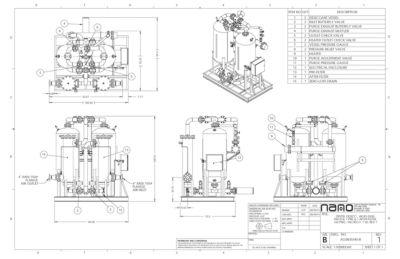

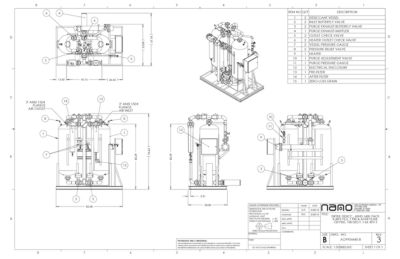

The general arrangement drawing for the aircel AEHD 150 model

D5 AEHD 0150 - GA Drawing

Filename
D5-AEHD-0150-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
401 KB
Format
application/pdf
View

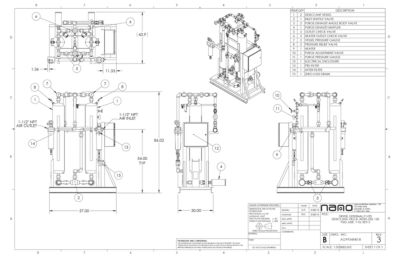

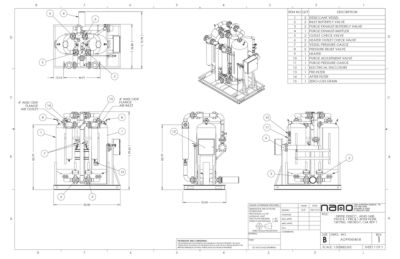

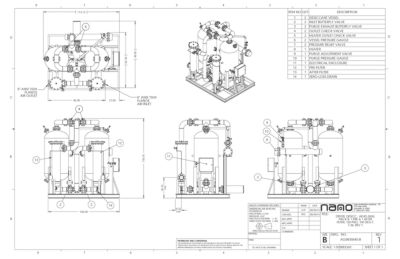

The general arrangement drawing for the aircel AEHD 250 model

D5 AEHD 0250 - GA Drawing

Filename
D5-AEHD-0250-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
406 KB
Format
application/pdf
View

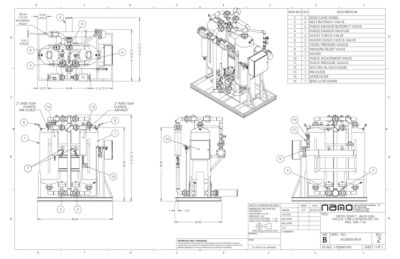

The general arrangement drawing for the aircel AEHD 350 model

D5 AEHD 0350 - GA Drawing

Filename
D5-AEHD-0350-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
394 KB
Format
application/pdf
View

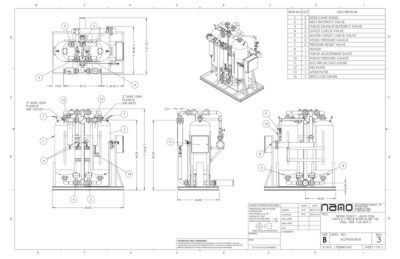

The general arrangement drawing for the aircel AEHD 500 model

D5 AEHD 0500 - GA Drawing

Filename
D5-AEHD-0500-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
406 KB
Format
application/pdf
View

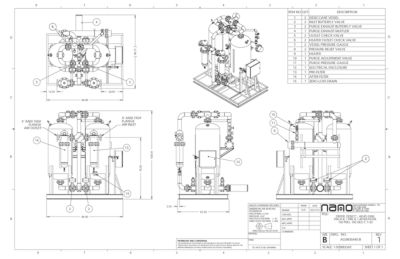

The general arrangement drawing for the aircel AEHD 750 model

D5 AEHD 0750 - GA Drawing

Filename
D5-AEHD-0750-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
363 KB
Format
application/pdf
View

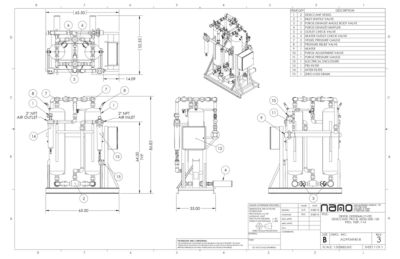

The general arrangement drawing for the aircel AEHD 1000 model

D5 AEHD 1000 - GA Drawing

Filename
D5-AEHD-1000-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
404 KB
Format
application/pdf
View
The general arrangement drawing for the aircel AEHD 1250 model

D5 AEHD 1250 - GA Drawing

Filename
D5-AEHD-1250-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
465 KB
Format
application/pdf
View
The general arrangement drawing for the aircel AEHD 1400 model

D5 AEHD 1400 - GA Drawing

Filename
D5-AEHD-1400-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
460 KB
Format
application/pdf
View
The general arrangement drawing for the aircel AEHD 1600 model

D5 AEHD 1600 - GA Drawing

Filename
D5-AEHD-1600-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
475 KB
Format
application/pdf
View
The general arrangement drawing for the aircel AEHD 2000 model

D5 AEHD 2000 - GA Drawing

Filename
D5-AEHD-2000-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
480 KB
Format
application/pdf
View
The general arrangement drawing for the aircel AEHD 2000 model

D5 AEHD 2000 - GA Drawing

Filename
D5-AEHD-2000-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
480 KB
Format
application/pdf
View
The general arrangement drawing for the aircel AEHD 2500 model

D5 AEHD 2500 - GA Drawing

Filename
D5-AEHD-2500-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
459 KB
Format
application/pdf
View
The general arrangement drawing for the aircel AEHD 3000 model

D5 AEHD 3000 - GA Drawing

Filename
D5-AEHD-3000-ga-general-arrangement-aircel-externally-heated-desiccant-dryer.pdf
Size
478 KB
Format
application/pdf
View

Features

Regeneration circuit is fully insulated for maximum efficiency, and  specifically designed for a long and dependable operating life in harsh industrial environments

A secondary heater contactor provides protection against overheating in the event of a primary contactor failure

ASME code pressure vessels, UL/cUL compliant, made in the USA activated alumina, lifting lugs and/or fork lift pockets

Specifications of our models

Dryer Models

Recommended Pre & After Filtration (1)

Inlet & Outlet (2)

Rated Flow (3)

Heater

Pre-Filter

After-Filter

NPT (F) / FLG

scfm

Nm3/h

kW

AEHD 150

GF 0175 M01

NHT 0150 M1

1"

150

254

2.5

AEHD 250

GF 0325 M01

NHT 0300 M1

1 ½"

250

423

3.75

AEHD 350

GF 0450 M01

NHT 0450 M1

2"

350

592

6

AEHD 500

GF 0700 M01

NHT 0650 M1

2"

500

845

7

AEHD 750

GF 0850 M01

NHT 1000 M1

2"

750

1268

11

AEHD 1000

GF 1250 M01

NHT 1000 M1

3"

1000

1690

15

AEHD 1250

GF 1250 M01

NHT 1250 M1

3"

1250

2113

18

AEHD 1400

GF 1500 M01

NHT 1600 M1

3"

1400

2366

22

AEHD 1600

NFZ 2500 M01

NHT 1600 M1

4"

1600

2704

27

AEHD 2000

NFZ 2500 M01

NFZ 2500 M1HT

4"

2000

3380

32.5

AEHD 2500

NFZ 2500 M01

NFZ 2500 M1HT

4"

2500

4225

37

AEHD 3000

NFZ 3500 M01

NFZ 3500 M1HT

6"

3000

5070

45

Specifications

Standard

Optional

Maximum particle size (ISO class) (5)

class 2 (1 micron)

class 1 (0.01 micron)

Maximum water content (ISO class) (5)

class 2 (-40°F/-40°C pdp)

-

Minimum/ design /maximum operating pressure range (6)

60 psig / 100 psig / 150 psig

4.1 bar / 6.9 bar / 10.3 bar

58 to 250 psig

 4 to 17.2 bar

Minimum / design/ maximum ambient temperature

38°F / 100°F / 120°F

3°C / 38°C  / 49°C

-

Minimum / design / maximum inlet temperature

38°F / 100°F/ 120°F

3°C / 38°C  / 49°C

-

Power supply requirements

460VAC/60Hz

-

(1) 2" and below are NPT(F) threaded. 3" and above are flanged. All units with 3" piping and above will be ANSI welded pipe

(2) in compliance with ADF 100 specifications for compressed air dryers: Inlet temperature: 100°F, ambient temperature: 100°F, inlet pressure

dew point: -40°F. For all other conditions refer to the correction factors or contact [email protected]

(3) approx. weight for all models includes desiccant; units 2500 scfm and above desiccant is shipped loose

(4) pre and after filters mounted on dryer as standard

(5) per ISO 8573.1:2010

(6) maximum working pressure for all models is 150 psig. For higher pressures, contact [email protected]

(8) all models are UL/cUL compliant

(9) all models have ASME coded pressure vessels. For other approvals, consult [email protected]

(10) technical specifications subject to change without notice. Direct inquiries to [email protected] or contact 704.897.2182
