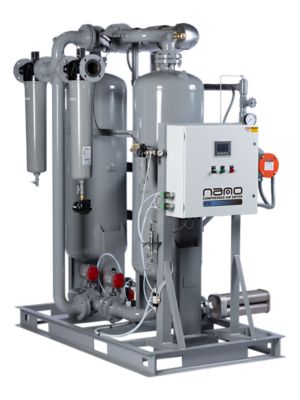

Regeneration circuit is fully insulated for maximum efficiency, and specifically designed for a long and dependable operating life in harsh industrial environments.
Key Specs:
Flow Rate
150 to 3000 scfm
Connection
1” NPT (F) to 6” Flg
air quality
ISO 8573.1:2010
Product Documentation
- Brochures

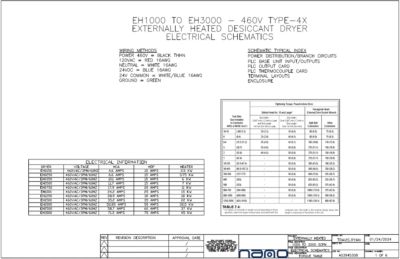

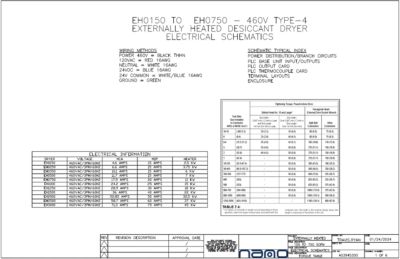

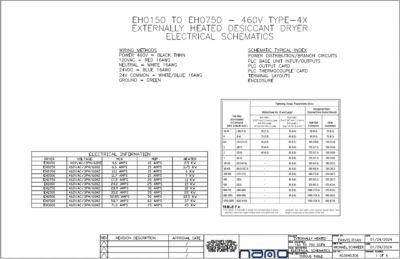

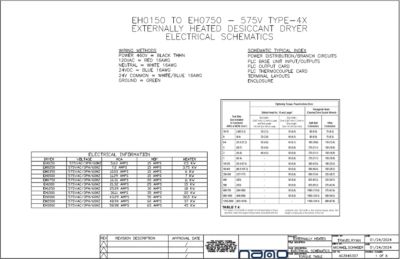

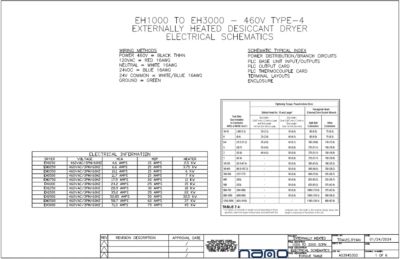

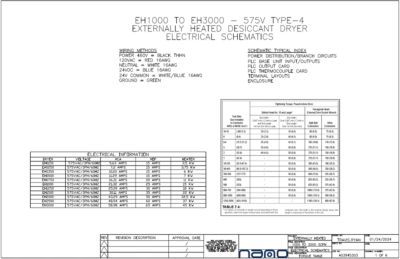

- Electrical Diagrams
- Flow Diagrams

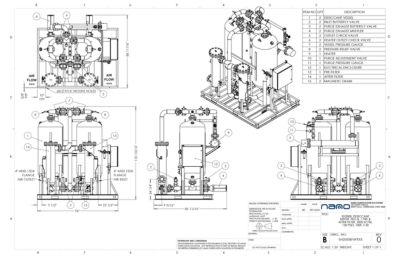

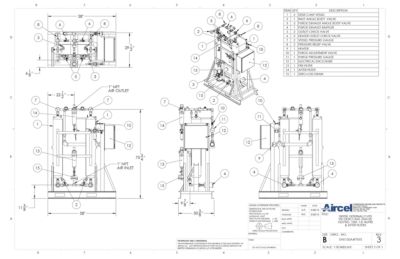

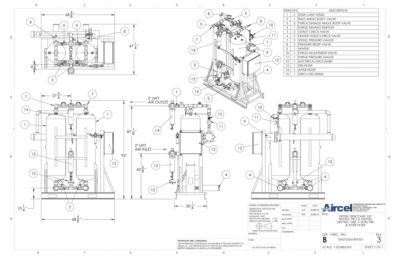

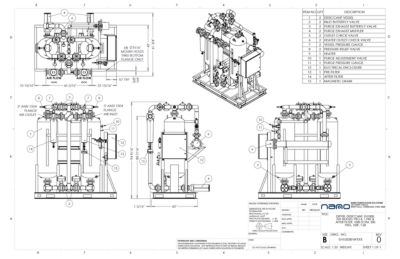

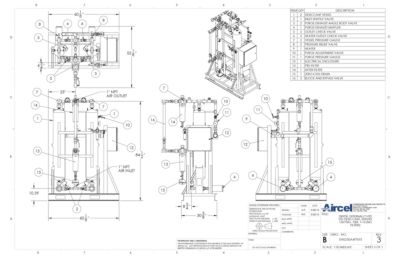

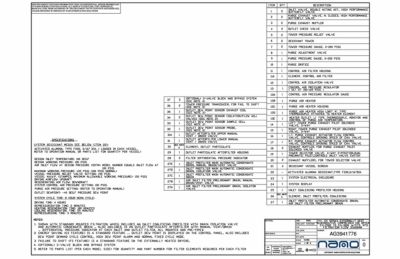

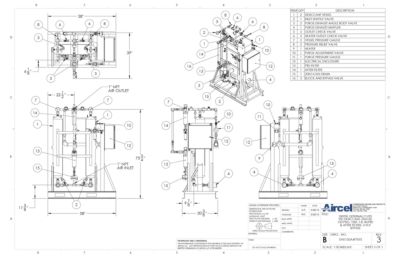

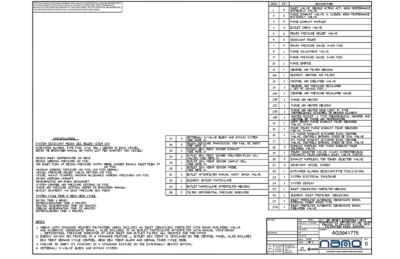

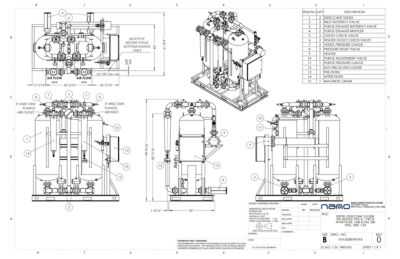

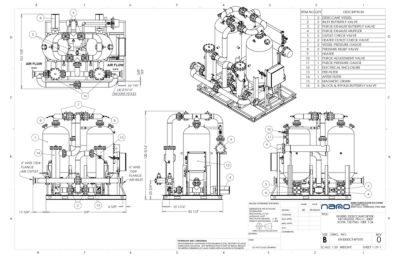

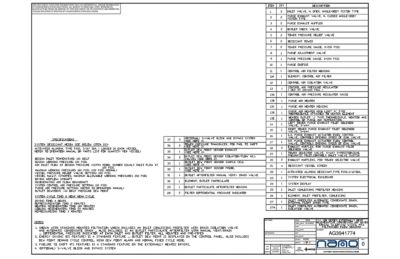

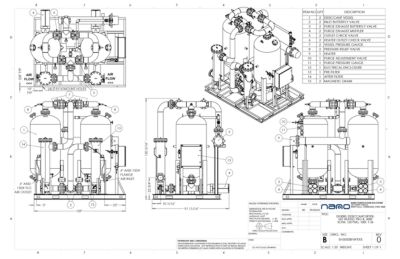

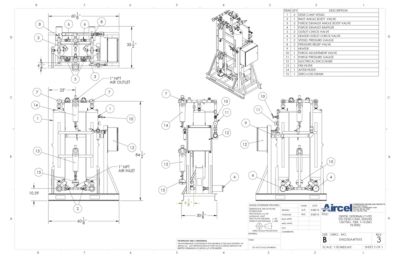

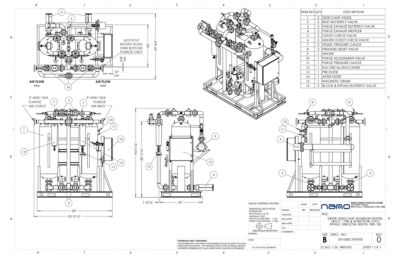

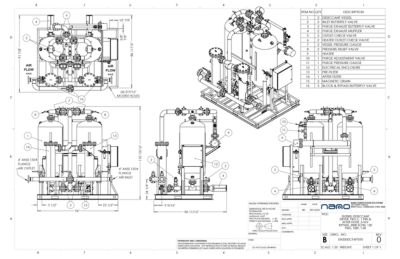

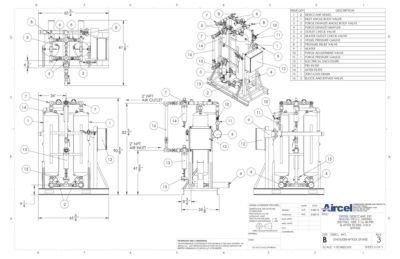

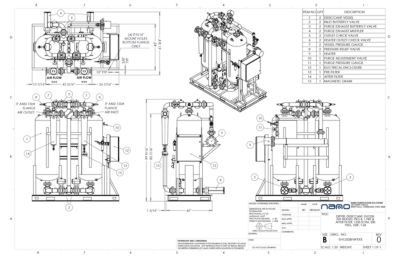

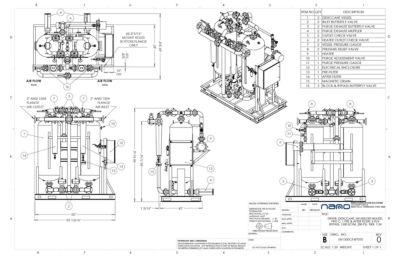

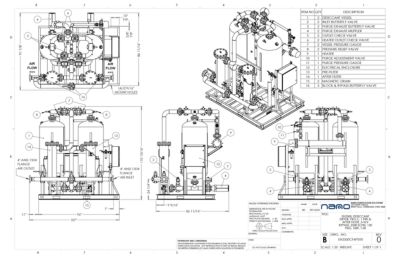

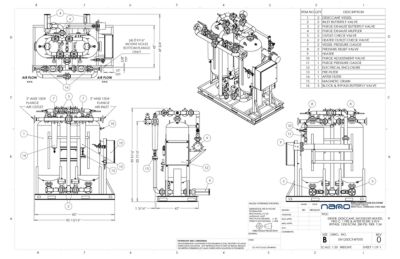

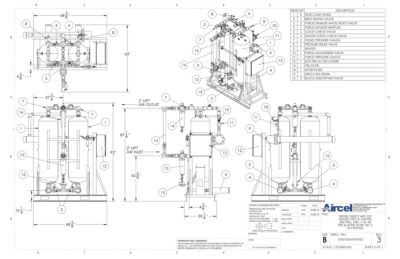

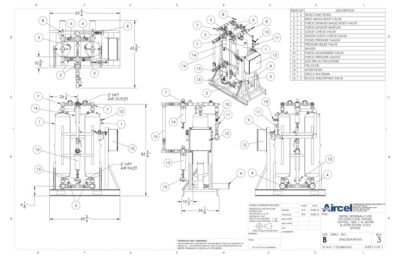

- General Arrangement Drawings
- Material Safety Data Sheets
- Worksheets
- With Pre & After Filters
- With Pre & After Filters Plus 3-Valve Pass
Features
A secondary heater contactor provides protection against overheating in the event of a primary contactor failure.
ASME code pressure vessels, UL/cUL compliant, made in the USA activated alumina, lifting lugs and/or fork lift pockets.
Specifications of Our Models
Externally Heated Desiccant Dryer Model |
Mounted Pre & After Filtration as Standard |
Inlet & Outlet |
Rated Flow at 100 psig |
Heater |
|
|---|---|---|---|---|---|
Prefilter |
After Filter |
NPT (F) / FLG |
scfm |
kW |
|
| EH 0150 | GFN 0175 M01 |
GFN 0175 M1 |
1" NPT (F) |
150 |
3 |
EH 0250 |
GFN 0325 M01 |
GFN 0325 M1 |
1 ½" NPT (F) |
250 |
4 |
| EH 0350 | GFN 0450 M01 |
GFN 0450 M1 |
2" NPT (F) |
350 |
6 |
EH 0500 |
GFN 0700 M01 |
GFN 0700 M1 |
2" NPT (F) |
500 |
7 |
| EH 0750 | GFN 0850 M01 |
GFN 0850 M1 |
2" NPT (F) |
750 |
11 |
| EH 1000 | GFN 1250 M01 |
GFN 1250 M1 |
3" Flg |
1000 |
15 |
| EH 1250 | GFN 1250 M01 |
GFN 1250 M1 |
3" Flg |
1250 |
18 |
| EH 1500 | GFN 1500 M01 |
GFN 1500 M1 |
3" Flg |
1500 |
22 |
| EH 2000 | NFZ 2500 M01 |
NFZ 2500 M1 |
4" Flg |
2000 |
33 |
| EH 2500 | NFZ 2500 M01 |
NFZ 2500 M1 |
4" Flg |
2500 |
37 |
| EH 3000 | NFZ 3000 M01 |
NFZ 3000 M1 |
6" Flg |
3000 |
45 |
Specifications |
Standard |
Optional |
|---|---|---|
Maximum particle size (ISO class) |
class 2 (1 micron) |
class 1 (0.01 micron) |
Maximum water content (ISO class) |
class 2 (-40°F pdp) |
- |
Minimum/ design /maximum operating pressure range |
Models EH 0150 to EH 1500 (70 psig / 100 psig / 180 psig) Models EH 2000 to EH 3000 (70 psig / 100 psig / 135 psig) |
58 to 250 psig |
Minimum / design/ maximum ambient temperature |
38°F / 100°F / 120°F | 20°F / 100°F / 120°F |
Minimum / design / maximum inlet temperature |
38°F / 100°F / 120°F | - |
Power supply requirements |
460V/3Ph/ 60Hz |
575V/3Ph/60Hz |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
