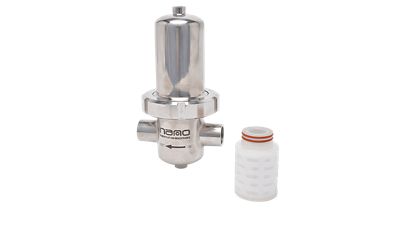

100% integrity tested prior to shipment, non-woven pleated depth polypropylene elements incorporate a positive double o-ring click-lock seal
Flow Rate
85 to 1150 scfm
Connection
1/2” to 3” NPT (F)
Filtration
0.01 micron
Product Documentation
- Brochures
- Spare Parts Guide
- Service Intervals
Features
These models are built with polished 304 or 316 stainless steel housing
Ideally suited for applications such as food processing, beverage, dairy, biotechnology, hospitals and packaging industry
Specifications of Our Models
Sterile Depth Filter Model |
Replacement Element |
Inlet & Outlet |
Rated Flow |
|---|---|---|---|
Part No. |
NPT(F) |
scfm |
|
PF 0085 SD-N |
E 102 SD |
½” |
85 |
PF 0120 SD-N |
E 102 SD |
¾” |
120 |
PF 0170 SD-N |
E 105 SD |
1” |
170 |
PF 0460 SD-N |
E 110 SD |
2” |
460 |
PF 0850 SD-N |
E 120 SD |
2 ½” |
850 |
PF 1150 SD-N |
E 130 SD |
3” |
1150 |
Specifications |
Standard |
Optional |
|---|---|---|
Design operating pressure range |
0 to 232 psig |
- |
Inlet & outlet connections |
NPT (F) |
tri-clamp sanitary |
Drain & vent connections |
¼” BSPP |
- |
Filter housing material |
1.4301 quality 304 stainless steel |
1.4404 quality 316L stainless steel |
Filter housing polishing |
passivated & polished to grade Ra <1.6um |
- |
Filter housing seals |
aseptic EPDM |
consult factory |
Element Performance |
SD |
|---|---|
Particle removal (at 100% pleated depth PP) |
0.01 micron |
Continuous operating temperature range |
35 to 120°F |
Maximum sterilizing temperature |
257°F |
Media material |
polypropylene |
Edia support & endcap material |
polypropylene |
Element to housing connection |
positive click lock with dual silicone o-rings |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
