Unique push fit elements ensure quick and simple maintenance.
Key specs:
Flow Rate
10 to 2549 Nm3/h
Connection
⅛” to 3” BSPP
Filtration
0.01 micron
Product Documentation

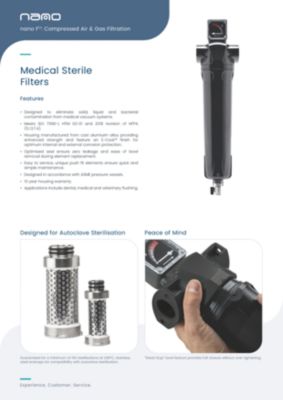

- Brochures

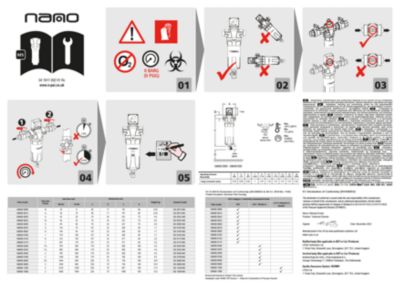

- User Guides
Features
“Dead Stop” bowl feature provides full closure without over tightening.
Housing manufactured from cast aluminum alloy providing enhanced strength and feature an E-Coat™ finish for optimum internal and external corrosion protection.
Specifications of our models
Filter Model |
Replacement Element | Inlet & Outlet | Rated Flow at 7 barg |
|---|---|---|---|
| Part No. | BSPP | Nm3/h | |
| GMSB 0006 | GE 0015 MS | ⅛” | 10 |
| GMSB 0015 | GE 0015 MS | ¼” | 26 |
| GMSB 0025 | GE 0032 MS | ¼” | 43 |
| GMSB 0032 | GE 0032 MS | ⅜” | 54 |
| GMSB 0050 | GE 0050 MS | ½” | 85 |
| GMSB 0070 | GE 0105 MS | ½” | 119 |
| GMSB 0085 | GE 0105 MS | ¾” | 144 |
| GMSB 0105 | GE 0105 MS | 1” | 178 |
| GMSB 0125 | GE 0175 MS | ¾” | 212 |
| GMSB 0175 | GE 0175 MS | 1” | 297 |
| GMSB 0280 | GE 0325 MS | 1 ¼” | 476 |
| GMSB 0325 | GE 0325 MS | 1 ½” | 552 |
| GMSB 0450 | GE 0450 MS | 2” | 765 |
| GMSB 0700 | GE 0700 MS | 2” | 1189 |
| GMSB 0850 | GE 0900 MS | 2 ½” | 1444 |
| GMSB 0900 | GE 0900 MS | 3” | 1529 |
| GMSB 1250 | GE 1250 MS | 3” | 2124 |
| GMSB 1500 | GE 1500 MS | 3” | 2549 |
Specifications |
GMSB 0006 to GMSB 0015 |
GMSB 0025 to GMSB 0050 |
GMSB 0070 to GMSB 1500 |
|---|---|---|---|
Design operating pressure range |
1.5 to 20.7 barg |
1.5 to 20.7 barg |
1.5 to 20.7 barg |
| Design operating temperature range | 2 to 120°C | 2 to 120°C | 2 to 120°C |
Condensate drain |
GFMDK 0050 | GFMDK 0050 |
GFMDK 1500 |
Differential pressure indicator / gauge |
- | indicator GFDP 1500 |
gauge GFDP 1500 |
Element Performance |
MS |
|---|---|
DOP efficiency |
>99.9999% |
Particle removal (micron) |
0.01 |
Recommended operating temperature range (°C) |
2 to 100 |
Design operating temperature range (°C) |
2 to 120 |
| Maximum autoclave temperature (°C) | 133 |
| Pressure drop - clean (bar) | 0.1 |
| Pressure drop - recommended replacement (bar) | 0.4 |
| Endcap material | stainless steel |
| Flow direction through element | outside to inside |
| Maximum steam sterilisation cycles | 100 |
| Maximum element life | 6 months or 1000 hours |
(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
