Medical Sterile Filters

nano's GMS medical sterile filters are the perfect solution for anyone looking for high-quality and reliable filters for dental, medical, and veterinary applications. These filters are carefully manufactured to exceed the most stringent requirements of medical gas pipeline systems, meeting the standards of ISO 7396-1, HTM 02-01, and the 2018 revision of NFPA (5.1.3.7.4). The filters are equipped with stainless steel element endcaps designed to be compatible with autoclave sterilization, ensuring long-lasting performance. The housing is designed in accordance with ASME pressure vessels and comes with a 10-year warranty, making it a smart investment. Choose nano's GMS medical sterile filters for your application, and experience the peace of mind that comes from knowing you have the best filtration system available.

Request Price

Key specs:

Flow Rate

6 to 1500 scfm

Connection

⅛” to 3” NPT(F)

Filtration

0.01 micron

Product Documentation

Brochures

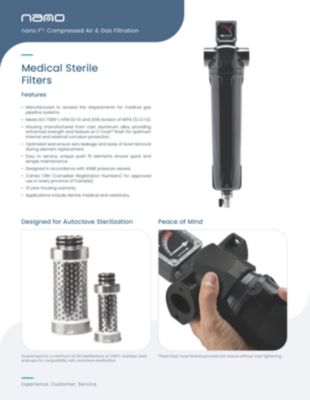

GMS Medical Sterile Filter Brochure for USA English

GMS Medical Sterile Filters

Product Brochure

Filename: EN-GMS-brochure-medical-sterile-filter.pdf
Size: 1 MB
Format: application/pdf

View

ISO Compressed Air Quality Standards

Support Brochure

Filename: EN-ISO-brochure-compressed-air-quality-standards.pdf
Size: 7 MB
Format: application/pdf

View

Features

Unique push fit elements ensure quick and simple maintenance.

“Dead Stop” bowl feature provides full closure without over tightening.

Housing manufactured from cast aluminum alloy providing enhanced strength and feature an E-Coat™ finish for optimum internal and external corrosion protection.

Specifications of our models

Filter Model	Replacement Element	Inlet & Outlet	Rated Flow at 100 psig
Filter Model	Part No.	NPT	scfm
GMS 0006	GE 0015 MS	⅛”	6
GMS 0015	GE 0015 MS	¼”	15
GMS 0025	GE 0025 MS	¼”	25
GMS 0032	GE 0032 MS	⅜”	32
GMS 0050	GE 0050 MS	½”	50
GMS 0070	GE 0105 MS	½”	70
GMS 0085	GE 0105 MS	¾”	85
GMS 0105	GE 0105 MS	1”	105
GMS 0125	GE 0175 MS	¾”	125
GMS 0175	GE 0175 MS	1”	175
GMS 0280	GE 0325 MS	1 ¼”	280
GMS 0325	GE 0325 MS	1 ½”	325
GMS 0450	GE 0450 MS	2”	450
GMS 0700	GE 0700 MS	2”	700
GMS 0850	GE 0900 MS	2 ½”	850
GMS 0900	GE 0900 MS	3”	900
GMS 1250	GE 1250 MS	3”	1250
GMS 1500	GE 1500 MS	3”	1500

Specifications	GMS 0006 to GMS 0015	GMS 0025 to GMS 0050	GMS 0070 to GMS 1500
Design operating pressure range	0 to 232 psig	0 to 232 psig	22 to 232 psig
Design operating temperature range	35 to 248°F	35 to 248°F	35 to 248°F
Condensate drain	GFMDK 0050	GFMDK 0050	GFMDK 1500
Differential pressure gauge	-	-	GFDP 1500
Differential pressure indicator	-	GFDP 0050	-

Element Performance	MS
DOP efficiency	>99.9999%
Particle removal	0.01
Recommended operating temperature	35 to 212°F
Design operating temperature range	35 to 248°F
Maximum autoclave temperature	273°F
Pressure drop - clean	1.5 psid
Pressure drop - recommended replacement	6.0 psid
Endcap material	stainless steel
Flow direction through element	outside to inside
Maximum steam sterilization cycles	100
Maximum element life	6 months or 1000 hours

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
