The nano low-flow nitrogen generator model, the GEN2 MINI

Nitrogen Generation

Low Capacity Nitrogen Generators

Looking for a dependable, cost-effective, and safe source of high-purity nitrogen for your low-flow applications? Look no further than nano's GEN2 MINI PSA nitrogen gas generator. It produces a continuous and clean supply of nitrogen gas with a purity level of 95% to 99.999% from compressed air, eliminating the need for costly and hazardous nitrogen transportation. With advanced controls and lower air consumption, it is an innovative and energy-efficient way to produce nitrogen on-site. Choose nano's GEN2 MINI PSA nitrogen gas generator for your small flow applications and enjoy a reliable and cost-effective source of high-purity nitrogen at your fingertips.

Key Specs:

Purity

95 to 99.999%

Flow Rate

18 to 664 scfh

Pressure Rating

87 to 145 psig

Product Documentation

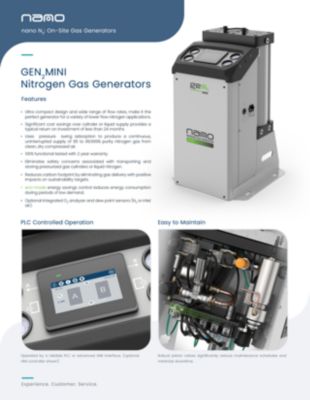

GEN2 Mini Nitrogen Gas Generator for USA English

GEN2 MINI Nitrogen Gas Generators

Product Brochure

Filename
EN-N2-GEN2-MINI-brochure-nitrogen-generators.pdf
Size
1 MB
Format
pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Support Brochure

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
pdf
View
equipment worksheet product technical paper

N-Series E941 Food Grade

Certificate

Filename
EN-N2-Series-declaration-certificate-food-grade-E941-nitrogen-generators.pdf
Size
262 KB
Format
pdf
View
electrical drawing schematic wiring diagram for GEN2 MINI basic controller nitrogen gas generator

GEN2 MINI Basic Controller Nitrogen Gas Generator

Electrical Diagram

Filename
N2-GEN2-MINI-basic-controller-electrical-drawing-nitrogen-gas-generator.pdf
Size
1 MB
Format
pdf
View
electrical drawing schematic wiring diagram for GEN2 MINI i4.0 advanced controller nitrogen gas generator

GEN2 MINI Advanced Controller Nitrogen Gas Generator

Electrical Diagram

Filename
N2-GEN2-MINI-i4.0-advanced-controller-electrical-drawing-nitrogen-gas-generator.pdf
Size
1 MB
Format
pdf
View
GA general arrangement drawing for GEN2 MINI standard nitrogen gas generator

GEN2 MINI Basic Controller Nitrogen Gas Generator

General Arrangement Drawing

Filename
N2-GEN2-MINI-standard-ga-drawing-nitrogen-generator.pdf
Size
499 KB
Format
pdf
View
GA general arrangement drawing for GEN2 MINI i4.0 HMI premium nitrogen gas generator

GEN2 MINI i4.0 Premium Controller Nitrogen Gas Generator

General Arrangement Drawing

Filename
N2-GEN2-MINI-i4.0-hmi-premium-ga-drawing-nitrogen-generator.PDF
Size
511 KB
Format
pdf
View

GEN2 MINI Nitrogen Generator Chemviron CMS GN UC H

Material Safety Data Sheet

Filename
En-N2-All-MSDS-Nitrogen-Generators-Chemviron-CMS-GN-UC-H-Rev-May-2019.pdf
Size
365 KB
Format
pdf
View

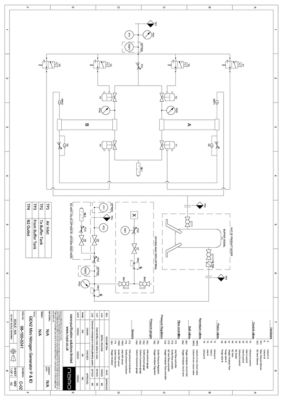

GEN2 MINI Nitrogen Gas Generator PID Flow Diagram

GEN2 MINI Nitrogen Gas Generator

Flow Diagram

Filename
N2-GEN2-MINI-PID-nitrogen-gas-generator.pdf
Size
1 MB
Format
pdf
View
user guide manual for GEN2 MINI nitrogen gas generators

GEN2 MINI Nitrogen Gas Generators

User Guide

Filename
N2-GEN2-MINI-user-guide-manual-nitrogen-gas-generator.pdf
Size
8 MB
Format
pdf
View
equipment worksheet product technical paper

Nitrogen Generators

Application Worksheet

Filename
EN-N2-Series-worksheet-nitrogen-generators.pdf
Size
214 KB
Format
pdf
View

Features

These models provide a typical return on investment between 6 to 24 months.

Plug-and-play system can be installed easily with minimum cost and interruption.

Compact design allows installation in spaces too small for twin tower generator systems.

Specifications of our models

Model Rated Outlet
Flow at 101.5 psig
Nitrogen Purity at the Outlet (Maximum Oxygen Content)
99.999%
(10 ppm)
99.995%
(50 ppm)
99.99%
(100 ppm)
99.95%
(500 ppm)
99.9%
(0.10%)
99.5%
(0.50%)
99%
(1%)
98%
(2%)
97%
(3%)
95%
(5%)
GEN2MINI-060 scfh - - - 21 28 60 74 99 120 152
GEN2MINI-080 scfh - 28 35 46 60 99 131 166 194 244
GEN2MINI-100 scfh 18 46 53 78 88 148 187 240 276 339
GEN2MINI-110 scfh 28 49 60 95 113 184 226 276 311 392
GEN2MINI-120 scfh 57 78 88 131 152 219 283 357 413 505
GEN2MINI-130 scfh 64 106 120 166 194 279 350 431 498 664

Specifications

Recommended inlet air quality (ISO class)

2.2.1

Minimum inlet air quality (ISO class)

2.4.1

Minimum operating pressure

87 psig

Maximum operating pressure

145 psig

Recommended operating temperature range

68 to 77ºF

Minimum/maximum operating temperature range

41 to 122ºF

Supply voltage 100 - 240 V AC
Fuse rating 3A 'T'
Frequency 50 - 60 Hz
Maximum power consumption 72 W
IP rating IP53 (NEMA 2)

(1) This information is for general information purposes only. For additional technical specifications, refer to the product brochure, technical data sheets, and/or user guides. Technical specifications are subject to change.
