Low dew point desiccant dryers

Desiccant Compressed Air Dryers

Low Dew Point Desiccant Dryers

The nano modular ultra-high purity low dew point desiccant compressed air dryers are an effective solution for your most critical applications. By lowering the pressure dew point of the compressed air stream to -94°F/-70°C, it provides the ultimate protection for super critical applications such as semiconductor, electronics, and pharmaceutical manufacturing. These dryers have a modular, space-saving design that is easy to install & ready for use in spaces too small for a traditional twin tower dryer design.  Dual 1 and 0.01 micron pre-filtration and 1 micron outlet filtration , low pressure drop and consistent dew point performance are just a few of the benefits of the modular dryer system.

Flow Rate

2 scfm and up

Connection

⅜” PTC to 2 1/2” NPT(F)

Air Quality

ISO 8573.1:2010 Class 1.1.2

Low Dew Point Desiccant Dryers

ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Application Worksheet

Filename
EN-D-series-worksheet-desiccant-dryers.pdf
Size
212 KB
Format
application/pdf
View
equipment worksheet product technical paper

D-Series Technical Paper

Filename
EN-D-Series-technical-paper-desiccant-dryers.pdf
Size
450 KB
Format
application/pdf
View

Features

These models have high performance valves designed for durability, ease of maintenance, and long service life

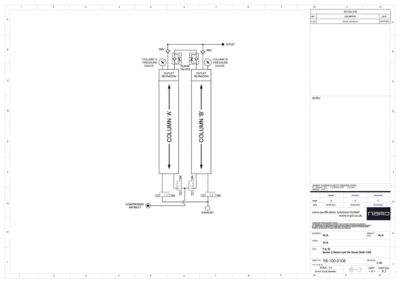

The patented, high density snowstorm filled cartridges (models NDL 010 to NDL 130) with integrated after filter (all models) can be serviced in less than 15 minutes and provide maximum adsorption capacity

Energy Saving Dew Point Control, advanced PLC controller available on models NDL 2110 to NDL 6130

Specifications of our models

Dryer Model

Stage 1 Pre-Filter

Stage 2 Pre-Filter

After-Filter

Inlet & Outlet

Rated Flow (3)



Model

Model

Model

BSPP (1)

scfm

Nm3/h

D1

NDL 010 LDP

GFNB 0006 M1

GFNB 0008 M01

GFNB 0008 RM1

3/8”

2.1

3.5

NDL 020 LDP

GFNB 0006 M1

GFNB 0006 M01

GFNB 0008 RM1

3/8”

3.5

5.9

NDL 030 LDP

GFNB 0015 M1

GFNB 0015 M01

GFNB 0015 RM1

3/8”

7

11.9

NDL 040 LDP

GFNB 0015 M1

GFNB 0006 M01

GFNB 0015 RM1

3/8”

10

18.2

NDL 050 LDP

GFNB 0025 M1

GFNB 0006 M01

GFNB 0025 RM1

½”

14

23

D2

NDL 060 LDP

GFNB 0050 M1

GFNB 0050 M01

GFNB  0050 RM1

1”

23

40

NDL 070 LDP

GFNB 0050 M1

GFNB 0050 M01

GFNB  0050 RM1

1”

28

49

NDL 080 LDP

GFNB 0070 M1

GFNB 0070 M01

GFNB 0070 RM1

1”

37

63

NDL 090 LDP

GFNB 0070 M1

GFNB 0070 M01

GFNB 0070 RM1

1”

46

78

NDL 100 LDP

GFNB 0105 M1

GFNB 0105 M01

GFNB 0105 RM1

1”

61

105

NDL 110 LDP

GFNB 0175 M1

GFNB 0125 M01

GFNB 0125 RM1

1”

74

126

NDL 120 LDP

GFNB 0175 M1

GFNB 0175 M01

GFNB 0175 RM1

1”

92

157

NDL 130 LDP

GFNB 0175 M1

GFNB  0175 M01

GFNB 0175 RM1

1”

124

210

D3

NDL 2110 LDP

GFNB 0280 M1

GFNB 0280 M01

GFNB 0280 RM1

2”

148

252

NDL 2120 LDP

GFNB 0280 M1

GFNB 0280 M01

GFNB 0280 RM1

2”

193

328

NDL 2130 LDP

GFNB 0450 M1

GFNB 0450 M01

GFNB 0450 RM1

2”

280

476

NDL 3130 LDP

GFNB 0700 M1

GFNB 0700 M01

GFNB 0700 RM1

2”

392

666

NDL 4130 LDP

GFNB 0850 M1

GFNB 0850 M01

GFNB 0850 RM1

2 ½”

525

892

NDL 6120 LDP

GFNB 0850 M1

GFNB 0850 M01

GFNB 0850 RM1

2 ½”

580

985

NDL 6130 LDP

GFNB 1250 M1

GFNB 1250 M01

GFNB 1250 RM1

2 ½”

777

1320

Specifications

D1/D2

D3



Standard

Optional

Standard

Optional

Maximum particle size (ISO class) (4)

-

-

class 2 (1 micron)

class 1 (0.01 micron)

Maximum water content (ISO class) (4)

class 1 (-70°C pdp)

class 2 (-40°C)

class 1 (-70°C pdp)

class 2 (-40°C)

Minimum operating pressure

6 barg

-

6 barg

-

Maximum operating pressure

16 barg

-

10 barg

Consult factory

Recommended operating temp range

1.5 to 30°C

-

2 to 30°C

-

Design operating temperature range

1.5 to 30°C

-

2 to 30°C

-

Power supply requirements

85 to 264V AC,  / 50/60 Hz

24V DC

85 to 264V AC,  / 50/60 Hz

24V DC

Power rating

25W (D1) 35W (D2)



35W



(1) NDL 010 to 050 have push to connect fittings on the inlet and outlet. All other models have BSPP threaded connections

(2) at an inlet conditions of 7 barg and 20°C and a -70°C outlet pressure dew point.  For all other conditions refer to the correction factors above

(3) recommended filtration: M1 & M01 grade pre filters with timer drains and a 1 micron after dust filter built into D1/D2  cartridge.

(4) per ISO 8573.1:2010

(5) to be used as a rough guide only. All applications should be confirmed by nano.  Contact us

(6) once the unit is online it has to run continuously to achieve and maintain the low dew point
