High Capacity Nitrogen Generators

When your application requires large flows of nitrogen gas, our range of high capacity GEN2-MAX nitrogen gas generators are the units you need.  The range produces Ultra-High Purity nitrogen gas in-house safely, simply and inexpensively using lower air consumption and refined controls to provide greater energy efficiency.  The GEN2-MAX includes purity sensors, a flow meter and flow control valve in the system for a complete solution.

Key Specs:

Purity

95 to 99.999%

Flow Rate

up to 101, 400 scfh

Max Allowable Working Pressure

145 psig/ 10 bar

Product Documentation

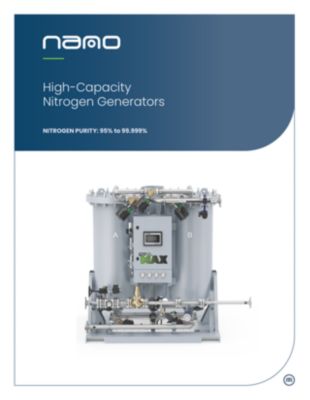

The brochure for the nano GEN2-MAX nitrogen generator models

N2 GEN2-MAX - Brochure

Filename
EN-N2-GEN2-MAX-brochure-nitrogen-generators.pdf
Size
7 MB
Format
application/pdf
View
ISO compressed air quality standards brochure

ISO Compressed Air Quality Standards

Filename
EN-ISO-brochure-compressed-air-quality-standards.pdf
Size
7 MB
Format
application/pdf
View
nano equipment user guide

N2 GEN2-MAX - User Guide

Filename
N2-EN-GEN2-MAX-user-guide-nitrogen-generators.pdf
Size
9 MB
Format
application/pdf
View
GEN2-MAX nitrogen generator installation guide

N2 GEN2-MAX 5.5-50k - Installation Proposal

Filename
N2-GEN2-MAX-5.5-50K-installation-proposal-ED-01.pdf
Size
846 KB
Format
application/pdf
View
GEN2-MAX nitrogen generator storage instruction book

N2 GEN2-MAX 5.5-50k - Instruction Book

Filename
N2-GEN2-MAX-5.5-50K-instruction-book.pdf
Size
9 MB
Format
application/pdf
View
GEN2-MAX nitrogen generator storage instruction guide

N2 GEN2-MAX 5.5-50k - Storage Instructions

Filename
N2-GEN2-MAX-5.5-50K-storage-instructions-ED-01.pdf
Size
46 KB
Format
application/pdf
View
GEN2-MAX nitrogen generator service diagram

N2 GEN2-MAX 5.5-50k - Service Diagram

Filename
N2-GEN2-MAX-5.5-50K-service-diagram-ED-01.pdf
Size
2 MB
Format
application/pdf
View
equipment worksheet product technical paper

N-Series Application Worksheet

Filename
EN-N2-Series-worksheet-nitrogen-generators.pdf
Size
214 KB
Format
application/pdf
View
equipment worksheet product technical paper

N-Series Technical Paper

Filename
EN-N2-Series-technical-paper-nitrogen-generators.pdf
Size
464 KB
Format
application/pdf
View
equipment worksheet product technical paper

N-Series E941 Food Grade Certificate

Filename
EN-N2-Series-declaration-certificate-food-grade-E941-nitrogen-generators.pdf
Size
262 KB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 5.5K

Filename
N2-GEN2-MAX-5.5K-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 7.5K

Filename
N2-GEN2-MAX-7.5K-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 9.5K

Filename
N2-GEN2-MAX-9.5K-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 12K

Filename
N2-GEN2-MAX-12K-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 15K

Filename
N2-GEN2-MAX-15K-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 17K

Filename
N2-GEN2-MAX-17K-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 20K

Filename
N2-GEN2-MAX-20K-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 31K

Filename
N2-GEN2-MAX-25K-ga-drawing-nitrogen-generator.pdf
Size
1 MB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 39K

Filename
N2-GEN2-MAX-39K-ga-drawing-nitrogen-generator.pdf
Size
846 KB
Format
application/pdf
View
ga general arrangement drawing

N2 GEN2-MAX 50K

Filename
N2-GEN2-MAX-50K-ga-drawing-nitrogen-generator.pdf
Size
845 KB
Format
application/pdf
View
equipment electrical wiring diagram and electrical schematics

N2 GEN2-MAX 5.5-50K

Filename
N2-GEN2-MAX-5.5-50K-electrical-wiring-schematics-nitrogen-generator.pdf
Size
2 MB
Format
application/pdf
View
nano equipment flow diagram

GEN2-MAX 5.5-50k - Flow Diagram

Filename
N2-GEN2-MAX-5.5-50K-flow-diagram-ED-01.pdf
Size
264 KB
Format
application/pdf
View

Features

This range provides a typical return on investment of less than 24 months

Eco-mode energy savings control reduces energy consumption during periods of low demand resulting in significant reduction of operational cost



Vision01 PLC/HMI controlled operation provides maximum reliability with a touch screen interface

Specifications of our models

Generator

Model

Rated Outlet

Nitrogen Purity at the Outlet (Max Oxygen Content)*

99.999%

99.99%

99.95%

99.9%

99.5%

99%

98%

97%

96%

95%

Flow (1)

(10 ppm)

(100 ppm)

(500 ppm)

(0.10%)

(0.50%)

(1%)

(2%)

(3%)

(4%)

(5%)

GEN2-MAX 5.5K

scfh

1620

2420

3119

4093

5556

6496

7946

8998

10012

11049

GEN2-MAX 7K

scfh

2037

3042

3921

5145

6984

8166

9988

11311

12585

13888

GEN2-MAX 9.5K

scfh

2520

3960

5160

6720

9360

11100

13560

15720

17460

19320

GEN2-MAX 12K

scfh

3240

5040

6600

8640

12120

14340

17460

20220

22500

24900

GEN2-MAX 15K

scfh

3960

6120

8040

10500

14700

17400

21240

24540

27360

30240

GEN2-MAX 17K

scfh

4500

6960

9120

11880

16620

19680

24000

27780

30960

34260

GEN2-MAX 20K

scfh

5460

8520

11100

14520

20400

24060

29400

34020

37920

41940

GEN2-MAX 25K

scfh

6540

10200

13320

17400

24360

28800

35220

40680

45360

50160

GEN2-MAX 31K

scfh

8220

12780

16680

21840

30540

36120

44100

51000

56760

62880

GEN2-MAX 39K

scfh

10440

16200

21180

27660

38760

45840

55920

64680

72060

79740

GEN2-MAX 50K

scfh

13260

20640

26880

35160

49260

58260

71100

82260

91620

101400

Specifications

Standard

Optional

Design operating pressure range

72.5 to 145 psig / 5 to 10 bar

-

Design operating temperature range

41 to 122°F / 5 to 55°C

4 to 122°F / -16 to 55°C

Recommended operating temperature range

41 to 95°F / 5 to 35°C

-

Maximum inlet particulate

0.1 micron

-

Maximum inlet oil content

0.01 micron (2)

-

Maximum inlet dew point

38°F PDP (3)

-

Supply voltage

100 - 240 VAC (50 or 60Hz)

-

(1) at 100 psig inlet pressure and 68 - 77°F/20-25°C inlet temperature. For outlet flow at all other conditions contact support

(2) for standard conditions only. PDP Should be -20°F for operating under optional low temperature conditions

(3) including oil vapor
